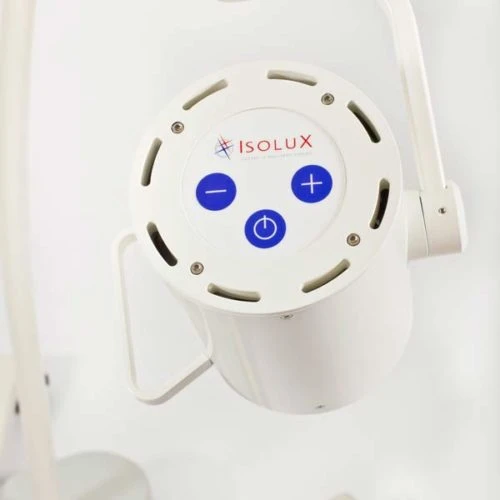

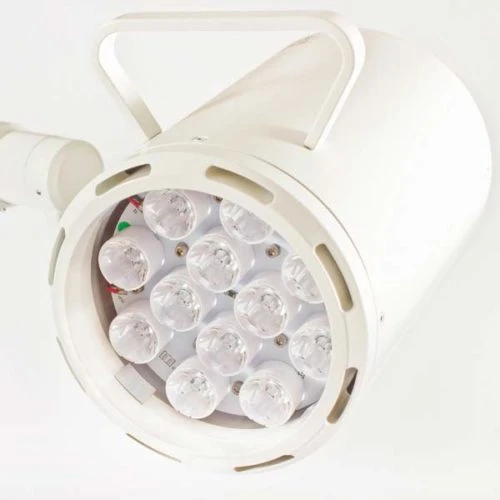

IsoLux IsoLED XII Medical Exam LED Procedure Light

IsoLux has designed this medical procedure lamp head to be positioned around the examination table to examine all parts of the patient. The five rotations allow easy positioning of the lamp beam from any angle. Available in wall, ceiling, or stand-mounted versions. IsoLED XII’s life is 50,000 hours, equating to more than 20 years of regular use.

Environmentally Friendly Procedure Light

IsoLux’s IsoLED XII Medical Exam LED Procedure Light uses less than 30 Watts of electricity to produce a 130mm spot at 500mm. Better yet, LEDs are mercury-free, do not contain CFCs, PoPs, VOCs, halogens, or other harmful chemicals, and are RoHS compliant. The exam light is also cool to the touch and friendly to the patient and operatives with no infra-red and no ultra-violet radiation.

Never having to change a bulb for the product’s lifetime means that IsoLux’s IsoLED XII is highly economical. The IsoLED XII Medical Procedure Light is substantially more efficient at producing more surgical quality light for less power.

IsoLED XII Medical LED Exam Procedure Light Features:

• Medical examination spotlight with more than 300 degrees of motion

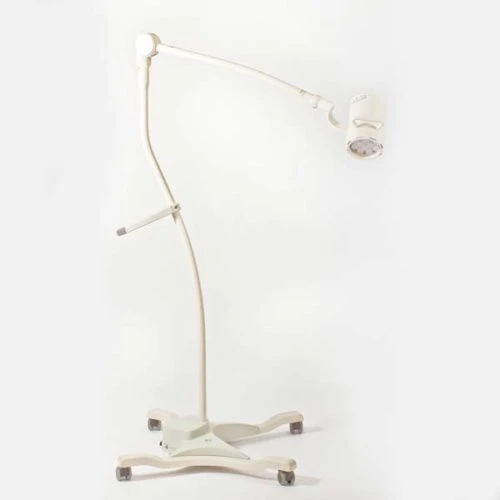

• Available with a wall mount, ceiling, and double head configuration

• The intensity variation of 3-100%

• CRI over 96 to give the best tissue rendition

• AC powered and agency approved

• 100,00 Lux @450mm and 50,000 Lux @ one meter

The IsoLED XII Medical Exam LED Procedure Light is ideal for use in the following medical environments:

• OB/GYN
• Family Practice
• Dermatology
• Emergency Rooms
• Outpatient Ambulatory Facilities
• Urgent Care Centers
• Dental Practices

IsoLux Warranty Information

• Two (2) Years on LED Exam Light
• One (1) Year on Battery Pack

IsoLED XII Medical LED Exam Procedure Light Specifications:

• Optical Power @ 0.5 meters: Over 100,000 Hours
• Spot size: 13 cm @ 0.5 meters distance
• Weight: Head Assembly Weight 4.28 lbs
• Swing Floor Stand Weight: 24 lbs
• Power Consumption: 38 watts
• CRI (Color Rendition Index): 96 Typical
• Head Rotation: Vert.: ±40°, Horz.:345°, Head: 360°
• Energy Star: The unit’s design surpasses Energy Star requirements
• Head Assembly Dimensions: 5” diameter by 7.625” long
• Color Temperature: 4000 º K
• Dimming Range: 3% to 100%
• AC Input Power: Universal: 100 to 240 VAC, 47 to 63 Hz.
• Operating Temperature: -10°C to +50°C
• Safety Standards: CAN/CSA C22.2 No.601.1-M90, UL60601-1, IEC60601-2-41
