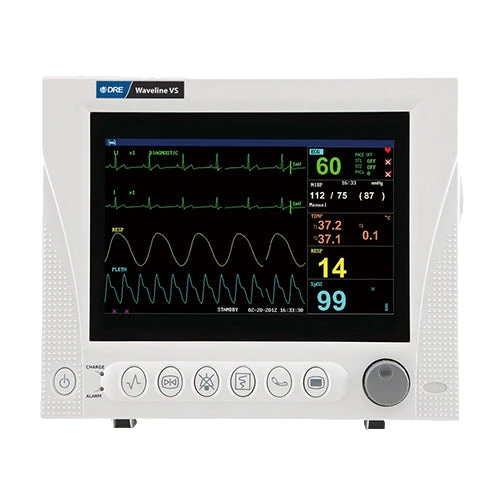

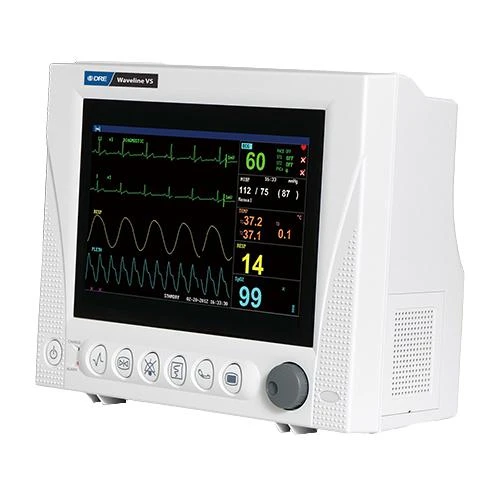

DRE Waveline VS Veterinary Monitor

Portable multi-parameter monitor suitable for feline, canine, and other animals.

Key Features:

• High Resolution Color TFT-LCD Screen
• Defibrillation and Electrosurgical Interference Protection
• Pitch Tone (Pulse-Tone Modulation)
• VGA Output (optional)
• Suitable for feline, canine, and other animals
• Standard Parameters: 3/5 lead ECG, RESP, SpO2, NIBP, PR, 2-Temp
• Optional: 2-IBP, Respironics CO2, Thermal Recorder
• Please ask us about adding these features onto your order

---

SPECIFICATIONS

Physical Specifications

• Device Dimension: 320mm (L) x 150mm (W) x 265mm (H) – 12.6 in. (L) x 5.9 in. (W) x 10.4 in. (H)
• Weight: approx. 5kg (11 lbs)

Display

• Color TFT-LCD: 10.1”
• Resolution: 800 x 480
• Traces Displayed: Up to 8
• Waveforms Displayed: Up to 11
• Sweep Speed: 6.25, 12.5, 25, 50 mm/s

ECG

• Lead Type: 5-lead and 3-lead selectable
• Gain: Auto, x 0.125, x 0.25, x 0.5, x 1, x 2, x 4
• Sweep Speed: 6.25, 12.5, 25, 50 mm/s
• ECG HR Range:15~350 bpm
• Resolution: 1 bpm
• Accuracy: 1 bpm or 1% (whichever is greater)
• Filter:
• Diagnostic Mode: 0.05~150 Hz
• Monitoring Mode: 0.5 ~40 Hz
• Surgical Mode: 1~20 Hz
• ST-Segment Detection:
• Measurement Range: -2.0 mV-2.0mV
• Alarm Range: -2.0 mV -2.0 mV

RESP

• Method: Trans-thoracic impedance
• Operation Mode: Auto/Manual
• RR Measurement Range: 6~150 rpm
• Resolution: 1 rpm
• Apnea Alarm Threshold: 10, 15, 20, 25, 30, 35, 40s
• Band Width: 0.2~2.5 Hz (-3 dB)

SpO2

• Measurement & Alarm Range: 0-100%
• Resolution: 1%
• Accuracy: 2% (70~100%)
• PR Measurement: 25~350 bpm
• Resolution: 1 bpm
• Accuracy: 2 bpm

NIBP

• Method: Automatic Oscillometric
• Operation Modes: Manual/Automatic/Continuous
• Auto Measurement Time Interval: 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 240, 480 minutes
• Measurement Unit: mmHg/kPa
• Measurement Types: Systolic, Diastolic, Mean, PR
• Pressure Range:
• Big Cuff:
• Systolic: 40~270 mmHg
• Diastolic: 10~215 mmHg
• Mean: 20~235 mmHg
• Medium Cuff:
• Systolic: 40~200 mmHg
• Diastolic: 10~150 mmHg
• Mean: 20~165 mmHg
• Small Cuff:
• Systolic: 40~135 mmHg
• Diastolic: 10~100 mmHg
• Mean: 20~110 mmHg
• Resolution: 1 mmHg
• Accuracy: 3 bpm or 3.5%, whichever is greater
• PR NIBP Measurement Range: 40~240 bpm
• Resolution: 1 bpm

IBP (2 Channels, Optional)

• Measurement Range: -50~300 mmHg
• Resolution: 1 mmHg
• Accuracy: 2% or 1 mmHg(whichever is greater)
• Sensitivity: 5 V/V/mmHg
• Impedance Range: 300-3000 Ω

Philips Respironics CO2 (Optional)

• Type: Sidestream/Mainstream
• Range: 0-150 mmHg
• Accuracy:
• 2 mmHG 0-140 mmHg
• 5% 41-70 mmHg
• 8% 71-100 mmHg
• 10% 101-150 mmHg
• AwRR Accuracy: 1 rpm

CO2 (Optional) Sidestream

• Range: 0-13% (0-100 mmHg)
• Accuracy:
• 2 mmHg<5.0% CO2
• <6% of the reading>5.0% CO2
• AwRR Accuracy: 1% or 1 rpm (whichever is greater)
• Sample Flow Rate: 50-250 ml/min. adjustable

Temperature (2 Channels, 1 probe by default)

• Measurement/Alarm Range: 0-50 C (32-122 F)
• Resolution: 0.1 C
• Accuracy: 0.1 C (without probe)
• Channel: Dual-channel. Provide T1; T2; T

Thermal Recorder (Optional)

• Print Speed: 25, 50 mm/s

Power Supply

• AC Power: 100-240 V AC, 50/60 Hz
• Battery: 14.8 V Rechargeable Li-Ion Battery
