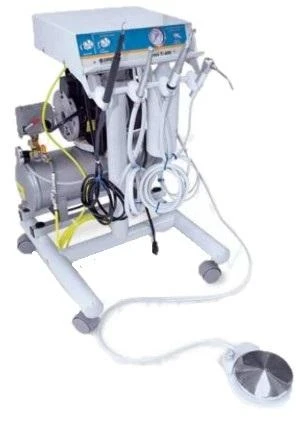

DRE Teres V-400 High Speed Veterinary Dental Air Unit

This all-in-one veterinarian dental cart performs all necessary procedures, from cutting to polishing and scaling.

The DRE Teres V-400 high speed veterinary dental unit has incorporated state of the art microchip circuitry into a new, highly efficient all-in-one unit. You can easily switch from polishing to scaling to cutting. The dental unit now has an optional Fiber Optics System with the high speed hand-piece.

The built-in 25K ultrasonic scaler is equipped with auto tuned oscillation that maintains optimum frequency when pressure is applied to the tip by constantly scanning and compensating, eliminating even partial loss of power. In addition, you can perform curettage, deep scaling of heavy calculus, remove stains and conclude the preventive treatment by polishing the teeth all in one operation.

The surgical stainless steel, heat treated tips glide smoothly across the tooth surface. Water flows internally through the tip directly to the operative site, gently cooling and lubricating the tooth, thus washing away the dislodged debris.

At the touch of the foot control, the chevron shaped ultrasonic insert surges power to the tip instantly without stalling. The scaler’s delayed cavitation feature disperses the excess water into a tiny mist even after the foot control is released thereby eliminating the annoying “after drip”. Recommended sterilization for the ultrasonic inserts are autoclave and chemiclave.

The high speed hand-piece, air and water-driven, can be used for cutting and extracting teeth. Use the hand-piece to cut sections of the tooth before extracting. The slow speed hand-piece is air-driven and used in conjunction with prophy paste for polishing.

---

Key Features:

• 400,000 RPM high speed drill
• 20,000 RPM low speed hand-piece
• Built in 25K ultrasonic scaler
• Auto-tune circuitry
• Air water syringe
• Includes oil-less compressor
• H-Frame mobile stand
• Independent water controls
• Built in water reservoir
• Switching power supply
• Automatic hand-piece activators
• Optional Fiber Optics System with high speed hand-piece

---

Specifications:

Ultrasonic Scaler:

• 25 Khz Scaler hand-piece
• 25 Khz Ultrasonic insert in the hand-piece
• Foot control for both ultrasonic scaling and air-driven drilling and polishing
• We recommend that the ultrasonic scaler not be used on any patient or by any operator fitted with a cardiac pacemaker.

Polishing/Drilling:

• Optional Fiber Optics System with high speed hand-piece
• 400,000 RPM high speed air turbine hand-piece
• Starter kit with 10 rubber cups and 10 prophy paste cups
• Up to 20,000 RPM low speed hand-piece
• Prophy angle for snap on rubber cups (autoclavable)
• 1:1 Straight hand-piece (autoclavable)
• Set of burs (autoclavable)
• Instruction manual

Compressed Air System:

• 100% Oil-less Operation
• Free Air Delivery – 2.00 SCFM
• Motor Power – 0.3 HP
• Noise Level – 45 dB
• Unloading Capability
• Air Tank Capacity 2.00 gallons
• Type – AC Single Phase
• Description 115-50/60-1
• Fitted with: Pressure switch, manual drain, globe valve, ASME pressure safety valve, built in water tank

Technical Data:

• Dimensions of control box: 11.5″ W x 14″ L x 5.5″ H
• Net weight of compressor: 42 lbs
• Shipping weight: 135 lbs

---

Recommended Maintenance:

• Compressor: Drain valve once a week
• Waterline: Depending on number of procedures, flush once a week to prevent bacteria build-up

• Handpieces: to procure life of hand-piece, especially if autoclaved, perform maintenance every 8-10 patients.

  High-speed hand-piece: spray lubricant

• Low-speed hand-piece: use a drop of oil (specific to dental instruments)

---
