DRE Masimo Radical 57 Pulse Oximeter

Original price was: $397.00.Current price is: $97.99.

SKU: CGV0C 1718850683 Categories: Veterinary, Veterinary accessories

Free Shipping, No Compromise on Quality
Secure Shopping Starts with Safe Payments
Hassle-Free Payments
Risk-Free Shopping with Returns

Description
Reviews (0)

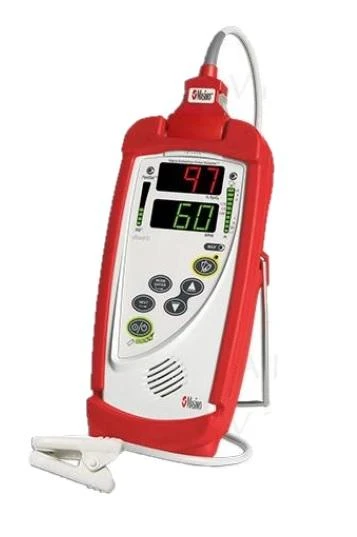

The Masimo Rad-57 is the world’s most versatile handheld oximeter with a rugged lightweight design ideal for field or hospital settings.

The Rad-57 requires no user calibration and does not need patient cooperation or consciousness. This is a great replacement for existing handheld pulse oximeters. You can get factory-ordered options or field-installed software upgrades to continuous monitoring and spot check measurements of SpHb, SpOC, SpMet and PVI.

Key Features:

Helps clinicians reduce the risk of misdiagnosing unsuspected carbon monoxide poisoning
Assists clinicians in detecting potentially life-threatening acquired methaemogloninaemia
Accurate SpO2 and pulse rate measurements during the most difficult clinical conditions, including during patient motion and conditions of low peripheral perfusion motion
Perfusion Index (PI) indicates arterial pulse signal strength and may be used by clinicians to help diagnose during low perfusion
User may programme default power-up settings Delivers more than 8 hours of continuous monitoring of SpCO, SpMet, SpO2, Pulse Rate, and Perfusion Index
FastSat tracks rapid changes in arterial O2 with unmatched fidelity
SmartTone™ beeps in sync with pulse, even under patient motion conditions
Up to 72 hours of trending memory of SpCO, SpMet, SpO2, Pulse Rate, and Perfusion Index
Sensitivity options of APOD, Normal and MAX provide flexibilty to support a range of clinical applications

Technology

More than 100 independent and objective studies demonstrate Masimo SET provides the most reliable oxygen saturation (SpO2) and pulse rate (PR) measurements under challenging clinical conditions, including patient motion and low peripheral perfusion.
Masimo rainbow technology analyzes multiple wavelengths of light to measure.
Masimo SET measurements, total hemoglobin (SpHb), carboxyhemoglobin (SpCO), methemoglobin (SpMet), and oxygen content (SpOC™).
Pleth Variability Index (PVI) is a breakthrough measurement that may help clinicians noninvasively and continuously assess fluid status of patients.

SPECIFICATIONS

SPO2 Modes

Averaging mode5 – 2, 4, 8, 10, 12, 14 or 16 seconds
Sensitivity – APOD, Normal and Max
FastSat 6 – On / Off

Alarms

Audible and visual alarms for high and low saturation (SpO2 1% to 100%, SpCO 5% – 40%, SpMet 0.5% to 30%, and pulse rate 25 – 240 bpm) Sensor condition, system failure and low battery alarms

Display / Indicators

Data Display – %SpO2, %SpCO, %SpMet, SpCO bar, SpMet bar, pulse rate, perfusion index, low Signal IQ alarm status, alarm silence and battery life
Type – LED

Compliance

EMC Compliance – EN60601-1-2, Class B
Equipment Classification – IEC 60601-1-1
Degree of Protection – Type BF-Applied part

Measurement Range

SpO2 – 1% – 100%
SpCO – 0% – 99%
SpMet – 0% – 99.9%
Pulse Rate – 25 – 240 (bpm)
Perfusion Index – 0.02% – 20%

Oxygen Saturation Accuracy (%SpO2)

Saturation – 70% to 100%
No Motion
Adults, Paediatrics – 2 digits
Neonate – 3 digits
Motion1
Adults, Paediatrics – 3 digits
Neonate – 3 digits
Low Perfusion2
Adults, Paediatrics – 2 digits
Neonate – 3 digits

Carboxyhaemoglobin Saturation Accuracy (%SpCO)

SpCO – 1% – 40% 3 digits3

Methaemoglobin Saturation Accuracy (%SpMet)

SpMet – 1% – 15% 1 digits3

Pulse Rate Accuracy

Pulse Rate – 25 – 240 bpm
No Motion
Adults, Paediatrics, Neonate – 3 digits
Motion1
Adults, Paediatrics, Neonate – 5 digits
Low Perfusion2
Adults, Paediatrics, Neonate – 3 digits

Resolution

Oxygen Saturation (%SpO2) – 1%
Pulse Rate (bpm) – 1 bpm
Carboxyhaemoglobin Saturation (%SpCO)
Numeric Display – 1%
Bar Display – 3, 6, 9, 12, 15, 20, 25, 30, 35, > 40%
Methaemoglobin Saturation (%SpMet)
Numeric Display – 0.1%
Bar Display – 0.5, 1-5, 7.5, 10, 15 > 20%
