DRE Edge Veterinary Surgery Table (Flat & V-Top)

A highly customizable and famously dependable surgery table for vets!

The DRE Edge Veterinary Surgery Table is perfect for veterinary facilities seeking a customizable and dependable table at an affordable price point. Choose from a hydraulic or electric base, durable stainless steel flat top or v-top, and an optional heating system. The DRE Edge Surgery Table is built to last for years of rigorous use in your facility.

Both the hydraulic and electric table bases come equipped with height adjustment and Trendelenburg positioning, making it easy for clinicians to have prime access to the operative field. With adjustable height and Trendelenburg positioning, this table can easily become an integral part of your veterinary OR suite.

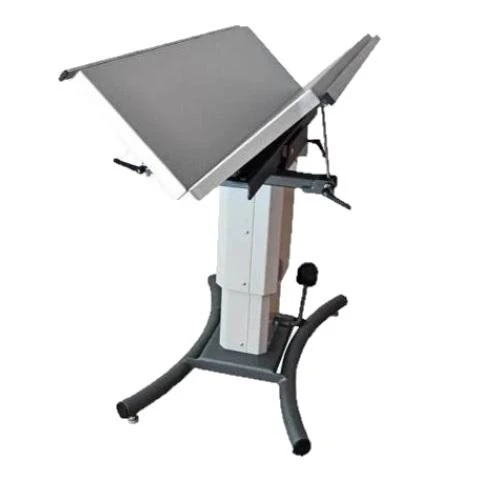

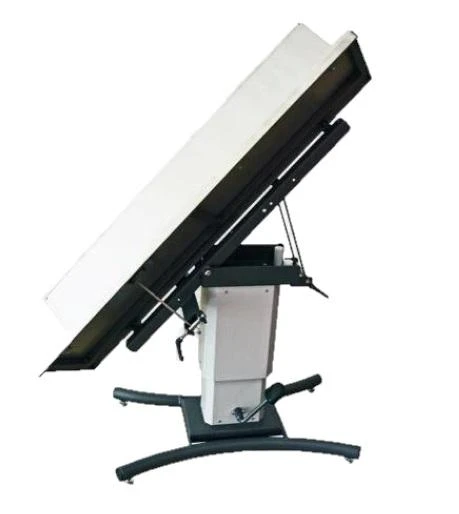

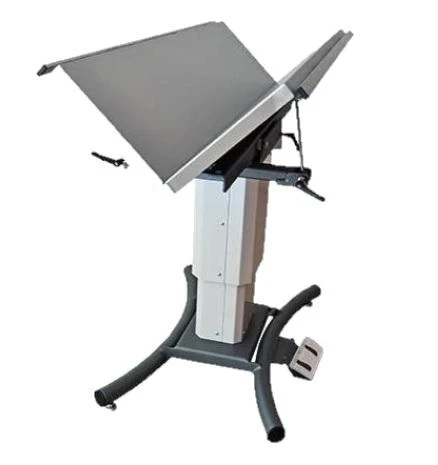

The V-Top has the same durable construction as the flat top, but adds premium positioning capabilities. Clinicians can adjust the angle of the v-top from 0 to 90 degrees to suit a variety of animals and procedures. The table top is also capable of longitudinal tilt up to 50 degrees.

The optional heating system adds built in heating to provide a warm work surface for your patients. No more cold surfaces to risk hypothermia during surgery. The built-in heating system can be easily adjusted using the digital display panel and fixed adjustment keys.

The DRE Edge Table is available with a wide selection of Accessories. This Table is also available with optional locking casters.

Key Features & Specifications:

• Durable stainless steel tabletop helps to maintain sterility in your facility

• Built-in drain hole

• Rails included

• Trendelenburg positioning ranges to flat to nearly vertical.

• Load capacity: 264.5 lbs (120 kg)

• Table Height is adjustable: 28.3 – 40.2 inches (72 – 102 cm)

• Tabletop dimensions: 60 x 23.6 inches (152 x 60 cm)

• Table Base Options:

• Electric

• Electric Base Power: 230 V, 0,63 A 50 Hz

• Hydraulic

• Table Top Options:

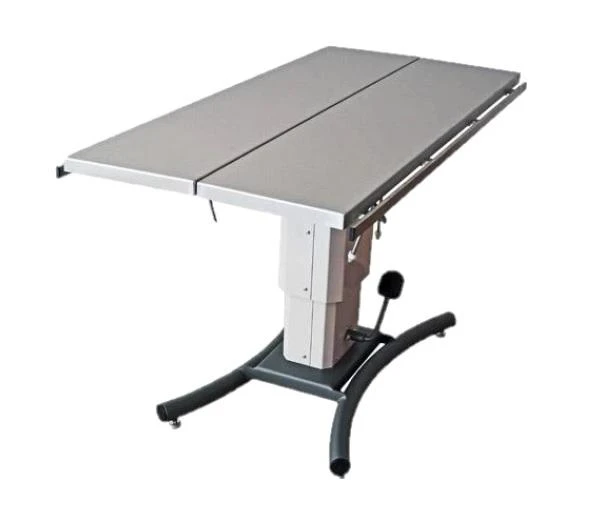

• Flat Top

• Secure and support the subject in the Trendelenburg position with fourteen tie-down hooks

• V-Top

• V-Top angle: 0 – 90°

• Lateral tilt: 0 – 50°

• Optional Built-in Heating System:

• Adjust the temperature using fixed adjustment keys

• Digital panel displays the current temperature and desired temperature

• Completes automatic self-diagnostic tests every time the unit is activated.

 Model Option Comparison:

DRE Edge Model	Number	ID	Table Top	Base	Heat
Flat Top, Electric Base	DR-70 FLAT60-EB	12610	Flat Top	Electric Base	No Heat
Flat Top, Hydraulic Base	DR-70 FLAT60-HB	12611	Flat Top	Hydraulic Base	No Heat
V-Top,  Electric Base	DR-70 TOPV60-EB	12612	V-Top	Electric Base	No Heat
V-Top, Hydraulic Base	DR-70 TOPV60-HB	12613	V-Top	Hydraulic Base	No Heat
Heated Flat Top, Electric Base	DR-70 FLAT60H-EB	12741	Flat Top	Electric Base	Built-in Heating System
Heated Flat Top, Hydraulic Base	DR-70 FLAT60H-HB	12742	Flat Top	Hydraulic Base	Built-in Heating System
Heated V-Top, Electric Base	DR-70 TOPV60H-EB	12739	V-Top	Electric Base	Built-in Heating System
Heated V-Top, Hydraulic Base	DR-70 TOPV60H-HB	12740	V-Top	Hydraulic Base	Built-in Heating System
