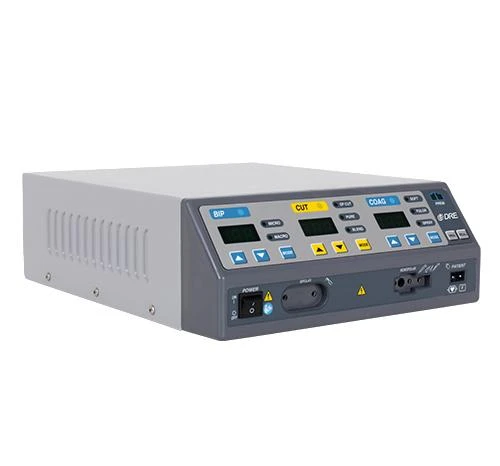

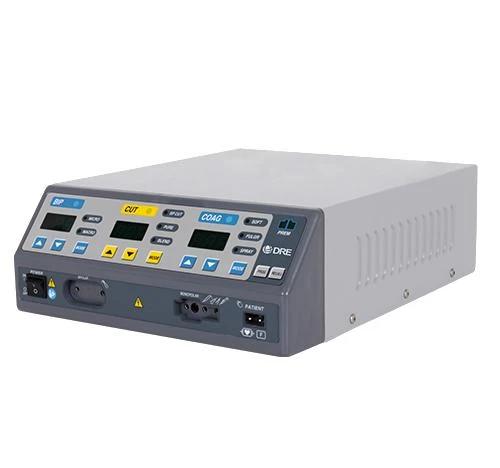

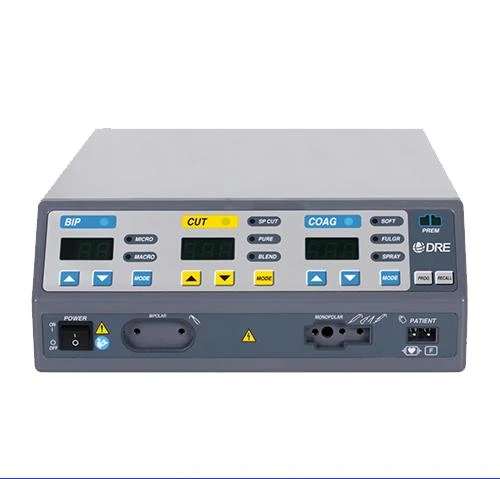

DRE Citadel 180 Veterinary Electrosurgical Unit (ESU)

The DRE Citadel 180 is an excellent solution for veterinary facilities seeking a full-featured electrosurgery generator at an economical price point.

With a variety of cut and coagulation settings, the Citadel 180 is easily-programmable for almost any procedure. Self-diagnostic protocols help to facilitate a safe and sterile environment.

The DRE Citadel 180 is available with an optional safety timeout function, argon beam coagulation, a smoke evacuator and a suction irrigation module — ask your us for details on these options!

Key Features:

• Stable, 180-watt power supply over a wide range of tissue with innovative tissue feedback technology.
• Patient return electrode monitoring for increased safety during every procedure.
• Various cut and coagulation settings enhance the unit’s versatility and efficiency.
• Spray coagulation function provides homogenous, efficient coagulation over a large area.
• Self-diagnostic protocols help to ensure all parts and accessories are functioning properly.
• Easily-programmable for quick and simple setup.
• Monopolar and bipolar capable with the appropriate accessories.
• Durable, water-proof foot pedals.
• Optional — Remote power settings allow clinicians to adjust mode and power from the sterile area.
• Optional — Timeout function automatically stops the HF output in the event of unintended activation.
• Optional — Argon beam coagulation, ultrasonic aspirator, smoke evacuator, suction irrigation module.

---

SPECIFICATIONS

Dimensions

• Length: 15 in (38 cm)
• Width: 12 in (30.5 cm)
• Height: 4.5 in (11.5 cm)
• Weight: < 11 lbs (5 kg)

Power

• Operating Voltage: 180-265 V AC
• Max Power input: 1000 VA
• Fuse: 4 A
• UPS Backup: 1KVA

Monopolar Autocut

• Pure Sine wave 390 kHz
• Sp Cut – Programmable Pulse or continues output, 200 W at 300 Ω, CF 1.5
• Pure – Continues output, 200 W at 300 Ω, CF 1.5
• Blend – Bursts repeating at 29 kHz 55% ON cycle, 120 W at 300 Ω, CF 2.5

Bipolar

• Pure Sine wave 390 kHz
• Micro – Lower output voltage, 50 W at 110 Ω, CF 1.5
• Macro – Higher output voltage, 50 W at 100 Ω, CF 1.5

Monopolar Coag

• Damped Sine wave 460 kHz
• Soft – Repetition Frequency 62 kHz, 80 W at 500 Ω, CF 5.0
• Fulgurate – Repetition Frequency 34 kHz, 80 W at 500 Ω, CF 7.0
• Spray – Randomized Repetition Frequency 34 kHz < f < 50 kHz, 80 W at 500 Ω, CF 8.0
• Leakage Currents
• RF leakage current
• Monopolar: < 150 mA rms
• Bipolar: < 60 mA rms

Low frequency leakage currents

• Normal polarity, intact ground: < 10 μA
• Normal polarity, ground open: < 50 μA

Feedback system

• 3 Microprocessor Controlled 6Sense Technology with sampling rate above 4000 sense/second
• Maximum output power deviation < 15% or 5 watts, whichever is greater at any setting with PER-98

PREM system

• Measuring frequency: 85 kHz ± 10 kHz
• Measuring current: < 10 μA
• Acceptable resistance range: Dual Area PREM Patient Return Electrode: 10-135 Ω, Single Area Patient
• Return Electrode: < 10 Ω
